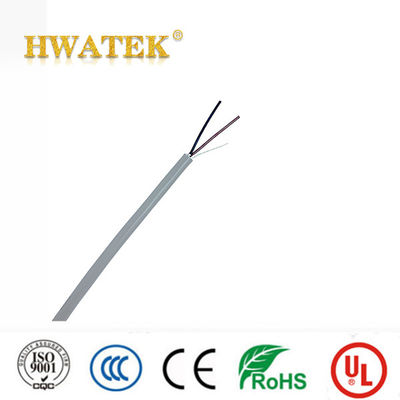

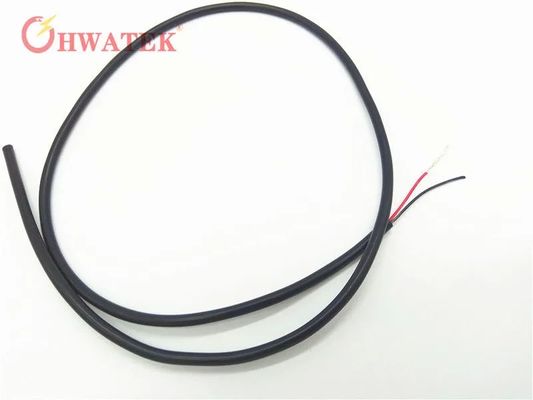

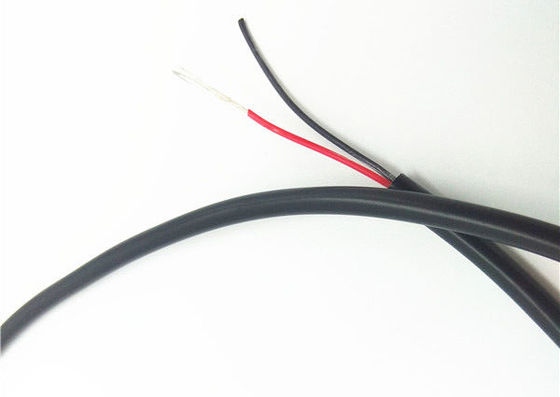

UL2661 2C×12AWG Bare copper stranded Industrial Flexible Cable wIth PVC Insulation PVC Jacket
| Construction |
| Conductor |
Bare copper stranded |
| Cross section |
12AWG |
| Construction |
65/0.254mm |
| Strand Dia. |
2.36mm |
| Insulation |
PVC |
| Nom.Thickness |
0.38mm |
| Min.Thickness |
0.33mm |
| Insulation Dia. |
3.20±0.15mm |
| Insulation colour |
1.red 2.black |
| Assembly |
2C×12AWG |
| Jacket |
PVC |
| Nom.Thickness |
0.76mm |
| Min.Thickness |
0.61mm |
| Outer Dia. |
8.50±0.30mm |
| Colour |
Black |
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:121±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥45%
UL758 -E258652-20060111-CertificateofCompliance-1....
Insulation:PVC
Conductor : Bare copper stranded
Construction
Insulation: 1.red 2.black
Jacket Color : black
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL2661
RoHS
Technical data
Rated voltage:300V
Rated Temperature: 90℃
Max.conductor DC resistance(20℃):5.43Ω/km
Dielectric Strength AC:2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Flexible
