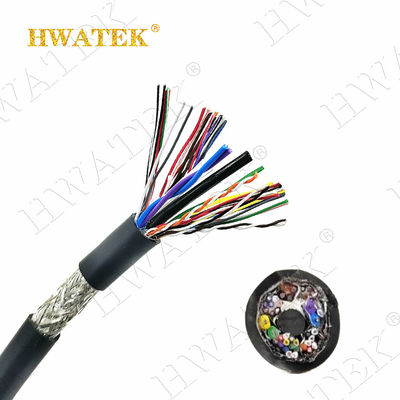

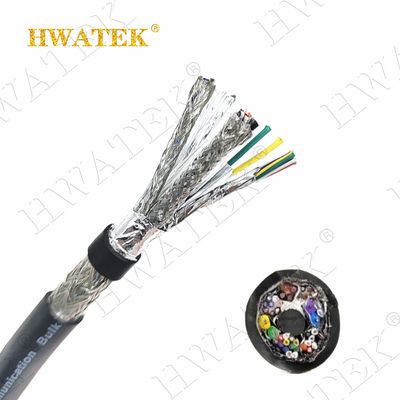

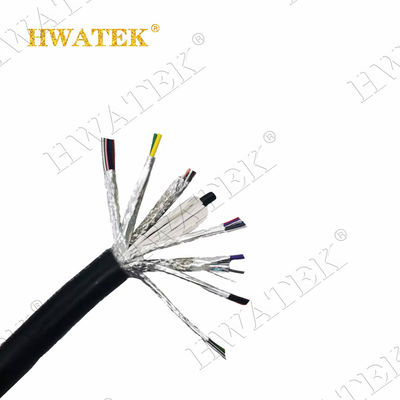

UL20276 Tinned Copper Stranded 6C×28AWG+ 1P x 28AWG braided 80℃ 30V PP insulation PVC jacket Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: industrial
Product character:
Flame rated : VW-1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168H
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
Advantages
- High flexibility with excellent bending capability
- Oil resistant construction
- UV resistant for outdoor use
- High flame resistance
- Moisture-proof design
Construction Details
Conductor: Stranded, tinned or bare copper
Insulation: Thermoplastic Elastomer
Assembly: 10~70 (2~5 cores) + 0.5~0.75P (1~10 cores)
Additional: Non-woven wrap
Sheath: PVC
Standards
International: UL20276
RoHS,REACH Compliant,
Technical data
Rated voltage:30V
Rated Temperature: 80℃
Flame: VW-1
Voltage withstand test:AC 0.5 kV/1min
| ITEM |
A:1P×28AWG |
B:6C×28AWG |
| CONDUCTOR |
Material |
Tinned copper stranded |
| Size |
7/0.127±0.008mm |
7/0.127±0.008mm |
| O.D.(Ref) |
0.38mm |
0.38mm |
| INSULATION |
Material |
PP |
PP |
| Min.average thickness |
0.23mm |
0.23mm |
| Min.thickness at any point |
0.18mm |
0.18mm |
| O.D. |
0.90±0.05mm |
0.90±0.05mm |
| TWISTED |
O.D.(Ref) |
1.80mm |
/ |
| |
|
|
| CABLING |
Material |
Al-mylar(Foil facing out,≥25%) |
| Assembly |
1P×28AWG+6C×28AWG |
| BRAID |
Material |
Tinned copper |
| Size |
16/6/0.10±0.008mm(85% min.) |
| JACKET |
Material |
PVC |
| Min.average thickness |
1.00mm |
| Min.thickness at any point |
0.80mm |
| O.D. |
6.50±0.20mm |
| ELECTRICAL CHARACTERISTICS |
| Rated voltage:30V |
|
| Rated temperature:-30-80℃ |
|
| Max. DC conductor resistance(20℃) |
| A&B:239Ω/km |
| Voltage withstand test:AC 0.5kV/min |
|
| Cold bending:-30±1℃×1H,no cracke |
|
