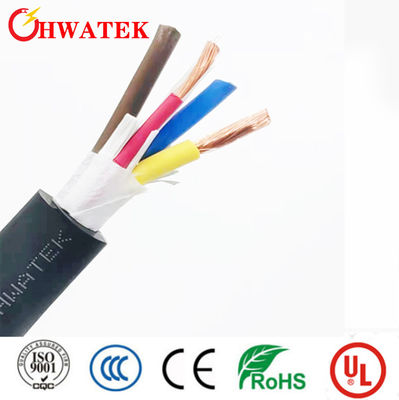

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable

Basic Properties
Place of Origin: চীন
Brand Name: HWATEK
Certification: UL
Model Number: CL2
Trading Properties
Minimum Order Quantity: 1000
Price: negotiable
Standard Packaging: রিল বা রোলস
Delivery Time: 4 সপ্তাহ
Payment Terms: টি/টি
Supply Ability: 1000km/ মাস
Product Summary
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable Product Specifications Construction Conductor Bare copper solid Cross section 18AWG Construction 16/0.254mm Strand Dia. 1.18mm Insulation SR-PVC Nom.Thickness 0.23mm Min.Thickness ...

Product Details

বিশেষভাবে তুলে ধরা:

Flame Test GB/T 18380.12 EV Charging Cable

,

Outdoor AC EV Power Charger Cable

,

Bare Copper Stranded Electric Vehicle Charging Cable

Rated Voltage: 150V
Rated Temperature: 75ºC
Conductor Material: বেয়ার কপার স্ট্র্যান্ডেড
Conductor Size: 16/0.254 মিমি
Insulation Material: এসআর-পিভিসি
Insulation Thickness: 0.23 মিমি
Min Insulation Thickness: 0.2 মিমি
Outer Diameter: 1.70 ± 0.10 মিমি
Jacket Material: পিভিসি
Jacket Thickness: 0.৮৪ মিমি
Min Jacket Thickness: 0.৬৬ মিমি
Cable Outer Diameter: 6.00 ± 0.30 মিমি
Max DC Resistance: 21.4Ω/কিমি
Tensile Strength: ≥10.3 এমপিএ
Elongation: ≥100%
Spec: HT2504808
Product Description
UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable Product Specifications Construction Conductor Bare copper solid Cross section 18AWG Construction 16/0.254mm Strand Dia. 1.18mm Insulation SR-PVC Nom.Thickness 0.23mm Min.Thickness 0.20mm Insulation Dia. 1.70±0.10mm Insulation colour 1.red 2.white 3.green 4.blue Filler optional Assembly 4Cx18AWG Jacket PVC Nom.Thickness 0.84mm Min.Thickness 0.66mm Outer Dia.
